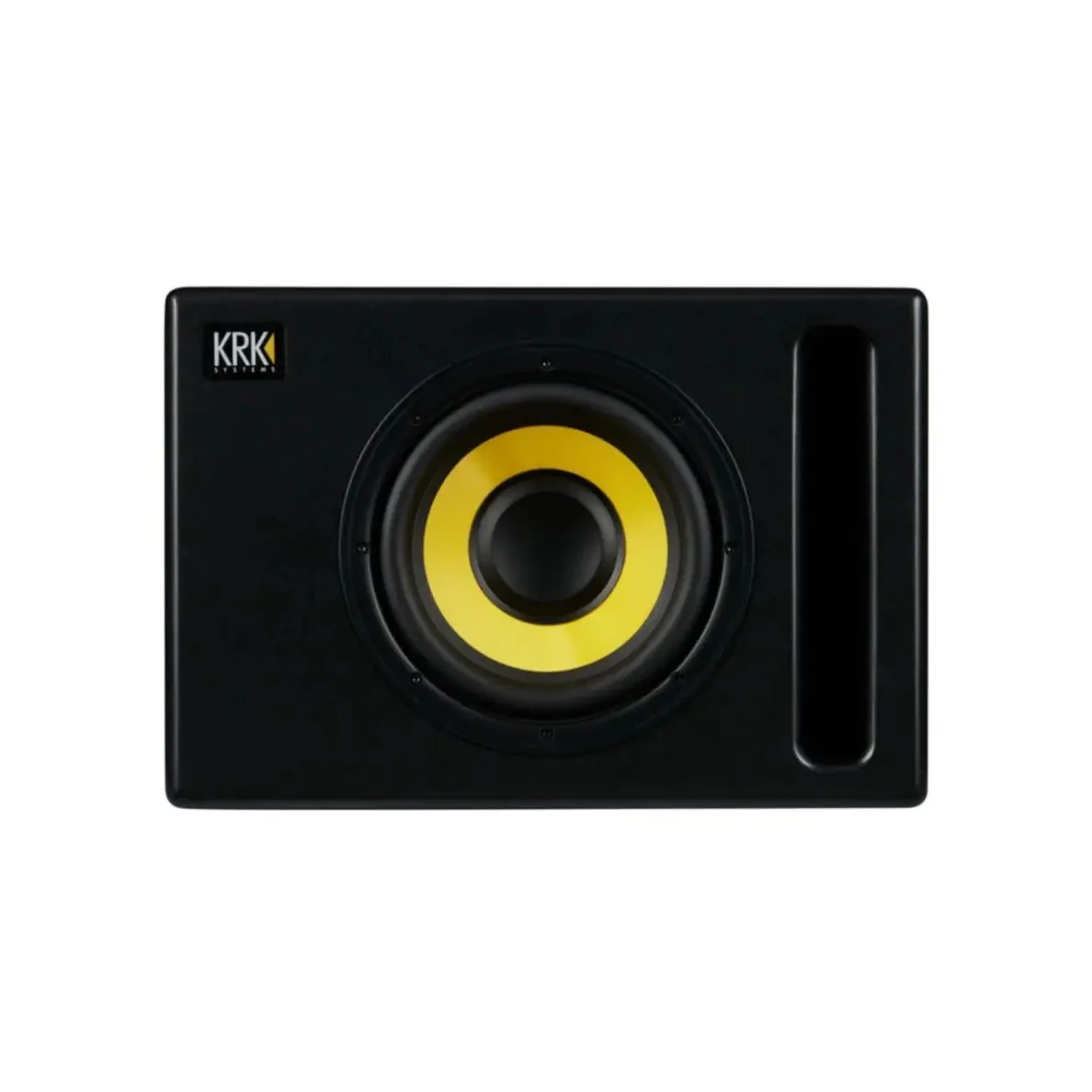

KRK ROKIT S8.4 8 INCH 109W ACTIVE STUDIO MONITOR SUBWOOFER

S8.4

Powered Studio Subwoofer

The S8.4 powered studio subwoofer builds upon KRK's legacy for sonic accuracy in a compact form factor. The custom-voiced, glass-aramid woofer delivers tight, defined bass, while the Class-D power amplifier dramatically increases transient response, control and punch. The four-position selectable crossover lets you adjust the subwoofer setting easily to your existing monitors.

Pairing the S8.4 subwoofer with KRK or another studio monitor delivers an optimized mixing and listening experience with extended low end, while the exclusive bypass-control feature provides full range audio to the monitors without switching off the subwoofer. KRK's S8.4 subwoofer doesn't just deliver precise bass and a rich feature set: it's the next dimension in subwoofer performance.

FEATURES

- 8" glass aramid composite woofer
- Bass extension to 29Hz with a max SPL of 112.8 dB
- Footswitch control enables/disables sub and crossover filter (footswitch not included)
- Redesigned cabinet with a lower profile and front-firing bass port
- Powerful, lightweight Class D amplification
- Optimized four-position crossover control
- Universal connectivity: XLR, 1/4" TRS, and RCA inputs and outputs
- Polarity and input sensitivity controls
- Ground lift switch prevents ground loops

HIGHLIGHTS

Bypass Footswitch
Mix with confidence. The bypass footswitch control allows you to quickly mute the sub and send full-range audio to your recording monitors.

Heavy Duty Enclosure
KRK Subwoofers feature reinforced MDF enclosures for maximum strength and durability. Never let a spilled beer or wild ninja roundhouse kick stop your mixing session again.

Front-firing Port
We engineered the front port to provide low frequency extension while reducing boundary coupling. The unique shape is optimized to avoid port turbulence.

SPECIFICATIONS

Configuration: Front Loaded, Vented Subwoofer
System Type: Active Subwoofer
Low-Frequency: 8" Glass Aramid Composite Woofer
Frequency Response: 34.5Hz - 133Hz
Max Peak SPL: 112.8 dB
Amplifier: Class D
Power Output (Continous): 109 Watts @ 1% THD+N @ 46Hz
Signal to Noise Ratio: 92 dB
Amplifier Distortion (THD + N): ≤ 0.1% @-3dB Of Max Power Output 35Hz-133Hz
Input Impedance: 9.4 KΩ Balanced, 9.2 KΩ Unbalanced
Ground Lift: On/Off
HPF Bypass: With Footswitch Only
Footswitch: Optional
Indicators: Power/Standby
Input Connectors: XLR L/R, 1/4" TRS L/R, RCA L/R, 1/4" Footswitch
LFE Input: N/A
Output Connectors: XLR L/R, 1/4" TRS L/R, RCA L/R
AC Power Input: 100VAC-240VAC
Enclosure: 15 mm and 18 mm Reinforced MDF
Finish: Black Vinyl Wrap, Baffle - Black Paint
Hardware: EVA Isolation Pad
Dimensions (H x W x D): 279 mm x 410 mm x 292 mm
