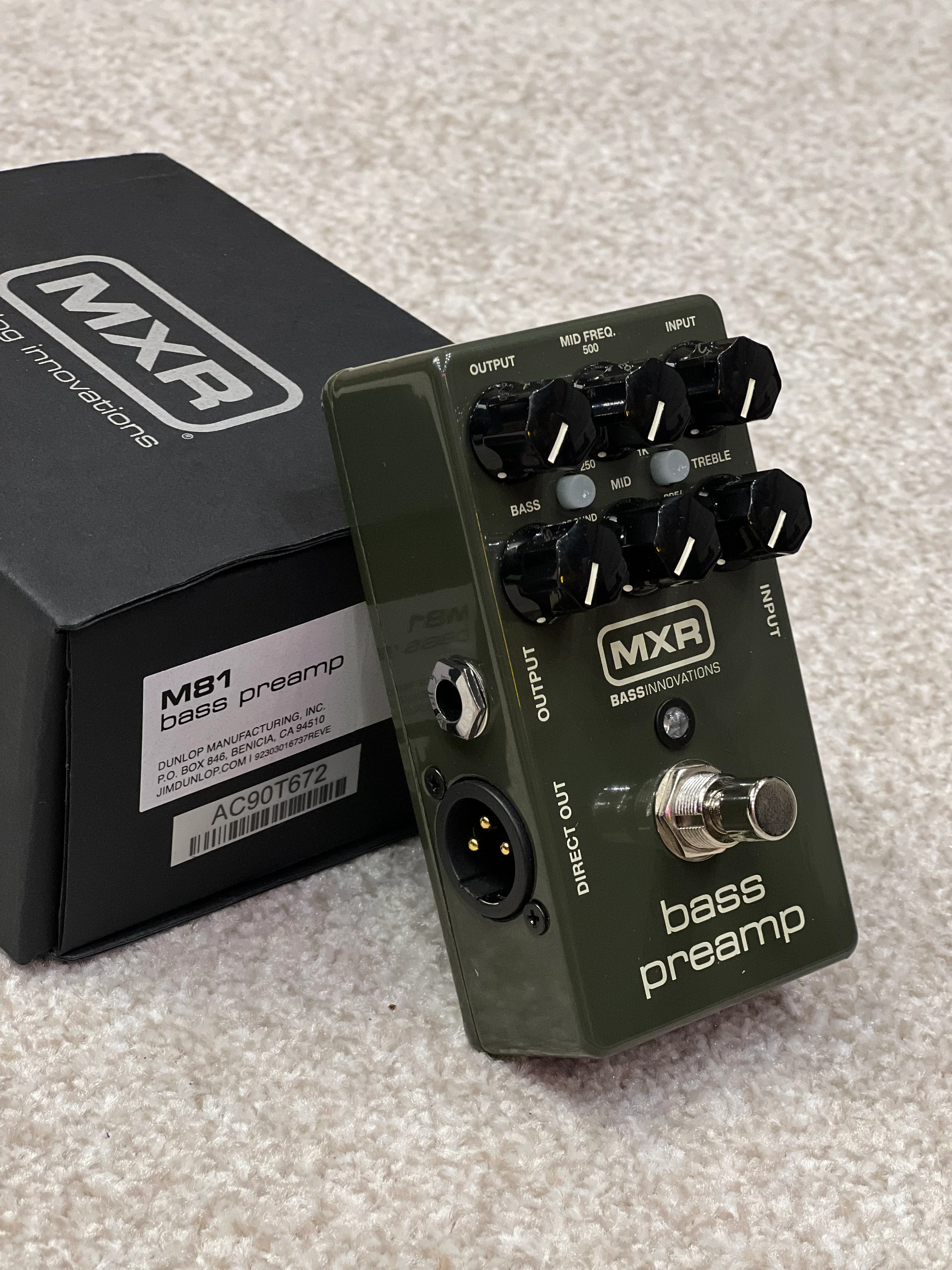

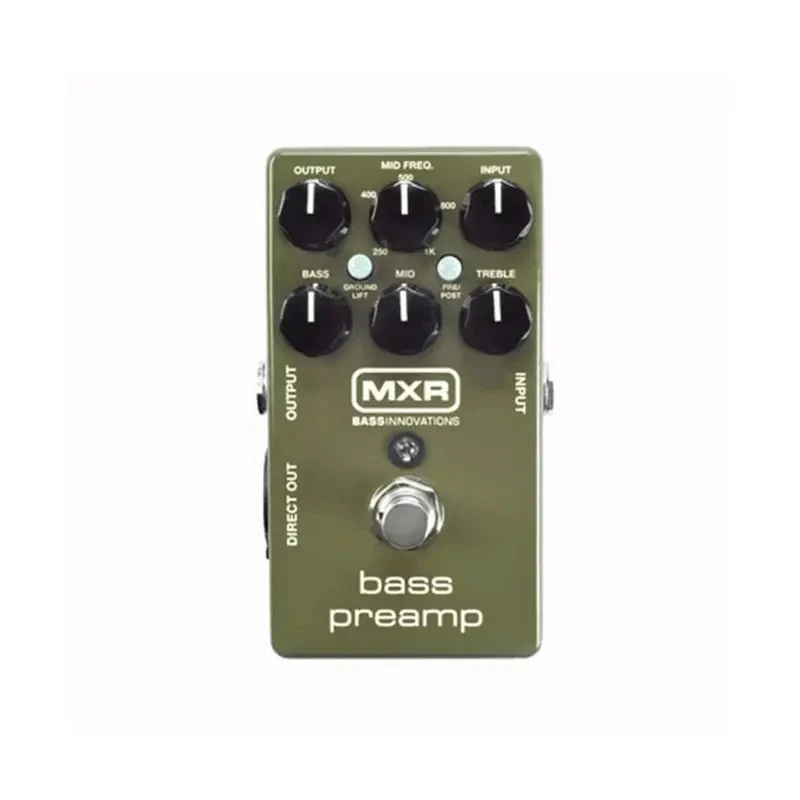

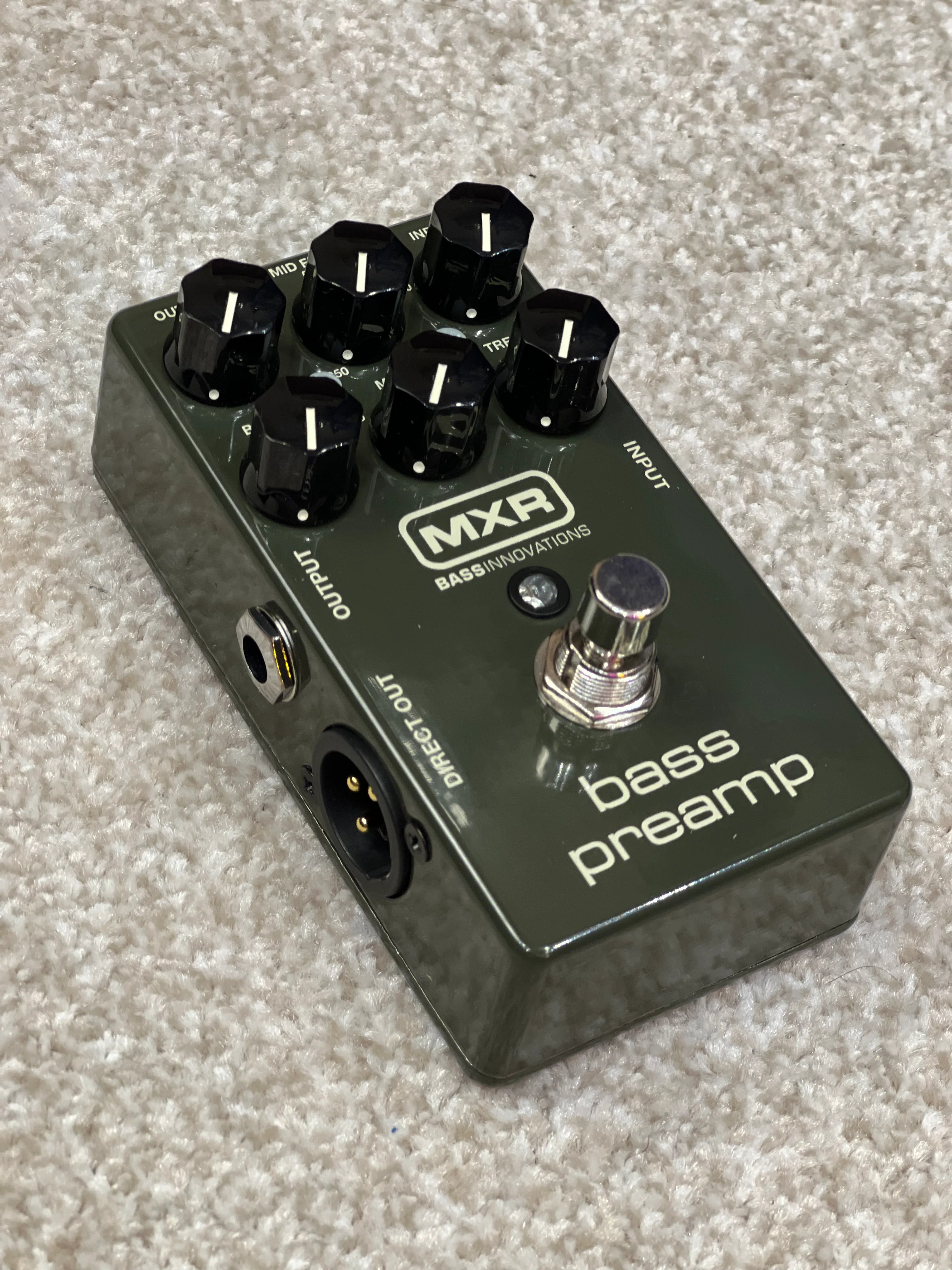

MXR M81 Bass Preamp Guitar Effects Pedal

The MXR Bass Preamp combines a pristine bass preamp with a studio-quality Direct Out in a Phase 90-sized box, providing clear tone without hogging precious pedalboard space. Use it to add a new voice to an old passive bass, sweeten up any amp, or put some special sauce on a particular song. Dial it in just the way you want it and send it straight to the house 'pre or post-EQ' with the built-in Direct Out.

Features:

• Separate INPUT & OUTPUT level controls
• 3-band EQ section with sweepable midrange
• Studio-quality Direct Out

• ±18 dB, 4 kHz (Treble)

Input Impedance	2.2 MΩ
1/4” Output Impedance	300 Ω, 40 Hz
Balanced Output Impedance	120 Ω, 40 Hz
Maximum 1/4” Output Level	+13 dBV
Maximum Balanced Output Level	-2 dBV
Noise Floor	-98 dBV
THD	0.03%, 1 kHz
EQ Controls	±16 dB, 40 Hz (Bass), ±17 dB, 250 Hz to 1 kHz (Mid),
Input Control	Pre EQ, ±10 dB
Output Control	Post EQ, +20 dB
Bypass	True Hardwire Buffer
Current Draw	8.5 mA
Phantom Power Current Draw	5 mA
Power Supply	9 Volts DC
